Benchmark: Encoding, Transcoding, and Cost Analysis
Date: June 23rd, 2025
Introduction
Transcoding is a video processing method aimed at reducing the bandwidth required by a stream, thereby enabling support for slower network connections or generating adaptive bitrates. The principle consists of reducing the quality (resolution, bitrate) of the source video stream by re-encoding it into a lower quality or with a different codec. However, this process is resource-heavy (computation and memory) and requires high-performance hardware.
As part of this benchmark, we seek to evaluate whether transcoding can be a viable solution to optimize and reduce the bandwidth cost potentially consumed by the project.

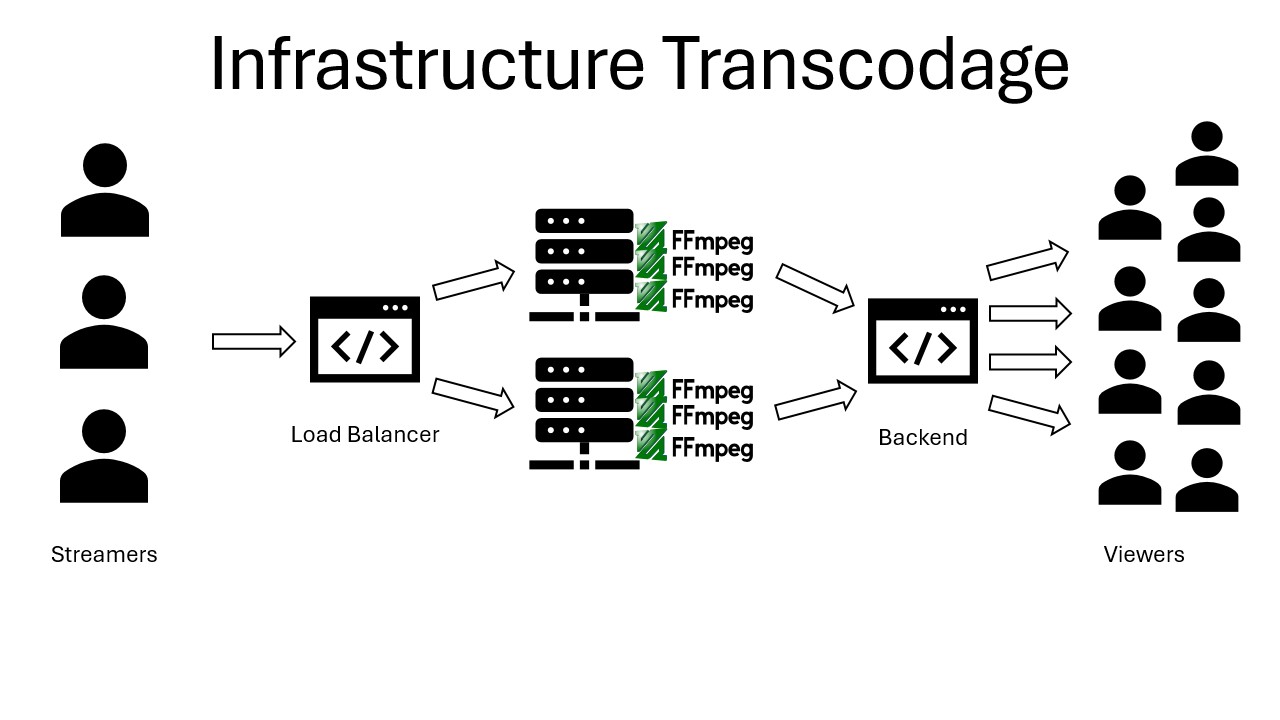

Here is the potential architecture of a solution using FFmpeg to transcode the video streams received by the platform before distributing them to users:
Infrastructure Cost Evaluation
The operational costs of the solution will be directly correlated to the number of users and streams managed.
Estimation of minimal costs at OVH:
- 1 Database: approximately €50/month.
- 1 Web Hosting Server (with 2 Gbps bandwidth): approximately €60/month.
- Minimum monthly cost (excluding transcoding): approximately €110/month.
Evaluation of Maximum Bandwidth Capacity
Based on an average video bitrate of 6 Mbps for a 1080p60 stream, the total bandwidth required is given by the relation:
Average bandwidth = Number of streams × ((6 Mbps × average number of streams in a stream) × number of viewers)
With a server offering 2 Gbps, the maximum theoretical number of simultaneous streams is: Maximum number of streams = 2000 Mbps / (6 Mbps/stream) ≈ 333 simultaneous streams
Thus, for a very minimalist deployment of the solution, the project would require approximately €110/month to manage a theoretical maximum of 333 streams.
note
This relationship is not equivalent to 333 different streamers, as our project allows managing multiple streams per streamer.
Transcoding Benchmark
Test Environment
The test consists of evaluating the transcoding of a 1080p60 source stream at 6 Mbps (H.264 Codec) to a 720p25 version.
- Hardware Used: MSI GF63 Thin 11SC Laptop (CPU: Intel Core i5-11400H - 6 cores/12 threads; GPU: Nvidia GTX 1650 Max-Q).
- Software: HandBrake (based on FFmpeg) on Windows.
Test Results:
| Resource | Encoder | Maximum Simultaneous Streams | Observations |
|---|---|---|---|
| GPU | NVENC H.264 | 5 streams | The framerate is maintained above the required minimum. |
| CPU | x264 | 3 streams | The framerate drops below the required minimum beyond 3 streams. |
note
The bottleneck appears to come from the CPU’s computing power.
Although the GPU (with NVENC encoder) allows more streams (limited to 8 on consumer cards), the increase in simultaneous transcoding tasks ends up overloading the CPU, causing the framerate to drop below the minimum required for live playback.
Extrapolation to Project Requirements
To estimate costs at the project scale, we extrapolate the results to high-capacity servers:
- Server Example: OVH a10-180 Node (120 vCPU, 4 × Nvidia A10).
- Estimated Capacity: Based on the benchmark, it can be estimated that such a node could handle around 150 simultaneous streams (using the 4 A10 GPUs).
Despite the relatively low capacity (150 streams for 4 GPUs), the envisioned solution would be extremely expensive. A single OVH a10-180 node costs approximately €2,200/month.
Conclusion
At our scale, it does not appear relevant to set up a transcoding infrastructure. The high hardware cost and additional technical complexity do not justify the potential bandwidth gain.
